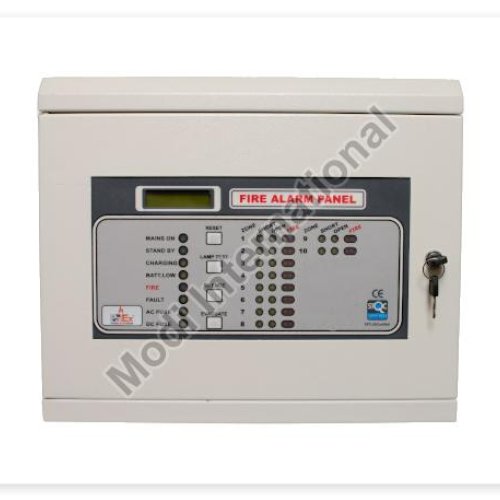

10 Zone Fire Alarm Panels

1 Piece (MOQ)

Business Type Manufacturer, Exporter, Supplier
Model No PSS – 10Z
Operating voltage Range AC 220v 50Hz # 10%, DC 24V/ 5Amp
Operating Temperature -0º C to 50º (176) C
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Operating Humidity
95% (non-condensing)
Hooter Output
4A (24V DC)
EOL
4k7 ohm, 1 per zone
Weight
7 kg
Construction
1.8 mm CRCA sheet duly power coated
Dimension
H 345mm * W 420mm * D 122mm
Color
Caramel White

The PSS-10Z is an 10-Zone control panel. It is indicating equipment forms the central part of a fire detection and alarm system. The 2-wire is compatible with PSS-10Z devices. And it is the central part of conventional fire alarm system, designed for applications requiring gas leak detector, bell, manual pull stations, and sprinkler supervision. Each zone can be disabled by a button.







Advance Micro Controller based Fire Alarm Panel.



16x2 Character LCD Display.



Mains, A. C. Fail, fuse, Charging, Rev, Batt. Indication.



Zone wise fire, open, short testing facility.



Zone Wise Hooter option along with common hooter
